Zinc Plated Die Pressed Caster With Red PVC Wheel
 |
 |
 |
 |
 |
 |
 |
 |
 |
|

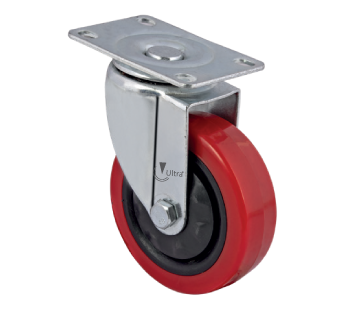

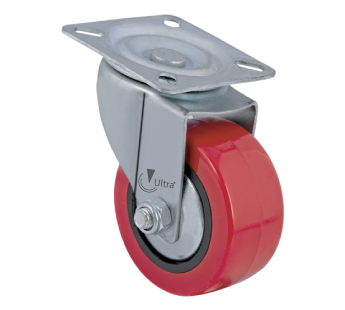

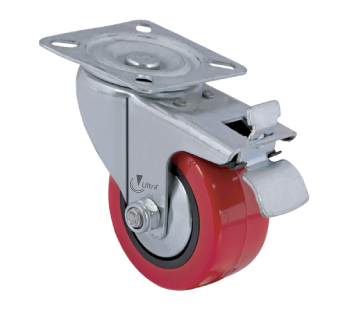

| Model No | Dia | Width | Plate | Bolt Hole | Hole | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Size | Height | (KG) | (KG) | Bearing | |||
| ZPD/75X32/PT/PVC | 75 | 32 | 92 X 62 | 78 X 45 | 8.5 | 105 | 50 | 60 | Single |
| ZPD/100X32/PT/PVC | 100 | 32 | 92 x 62 | 78 x 45 | 8.5 | 130 | 70 | 90 | Single |
| ZPD/125X32/PT/PVC | 125 | 32 | 92 X 62 | 78 X 45 | 8.5 | 155 | 100 | 130 | Single |
|
|
|
|
|
|
|
|
||||

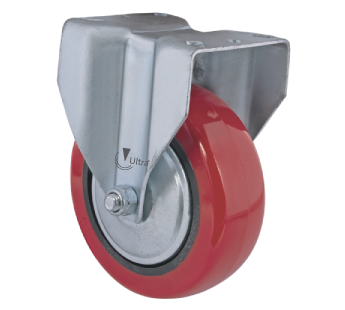

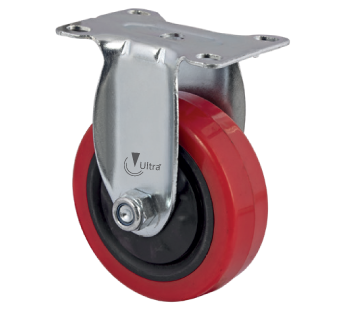

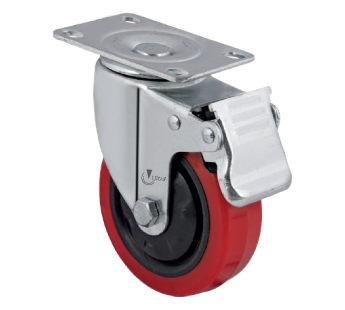

| Model No | Dia | Width | Plate | Bolt Hole | Capsule | Total | Dynamic | Static | Wheel | Fix Plate Size | Fix Bolt Hole |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Hole Size | Height | (KG) | (KG) | Bearing | |||||
| ZPD/100X50/PT/ PVC | 100 | 50 | 94 x 94 | 70 x 70 | 9 | 130 | 100 | 120 | Double | 120 x 73 | 95 x 45 |
| ZPD/150X50/PT/ PVC | 150 | 50 | 120 x 94 | 92 x 70 | 10 | 185 | 125 | 150 | Double | 116 x 80 | 85 x 54 |
| ZPD/200X50/PT/ PVC | 200 | 50 | 120 x 94 | 92 x 70 | 10 | 235 | 150 | 180 | Double | 116 x 80 | 85 x 54 |
|
|
|
|
|
|
|
|
|

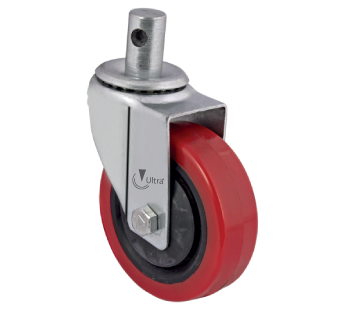

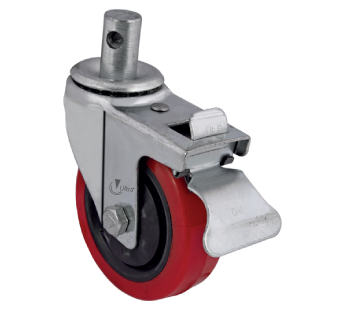

| Model No | Dia | Width | Pin Dia | Pin | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|
| Size | Height | Height | (KG) | (KG) | Bearing | |||
| ZPD/75X32/PI/PVC | 75 | 32 | 21 | 38 | 105 | 50 | 60 | Single |
| ZPD/100X32/PI/PVC | 100 | 32 | 21 | 38 | 130 | 70 | 90 | Single |
| ZPD/125X32/PI/PVC | 125 | 32 | 21 | 38 | 155 | 100 | 130 | Single |
|
|
|
|
|
|
|
|
|

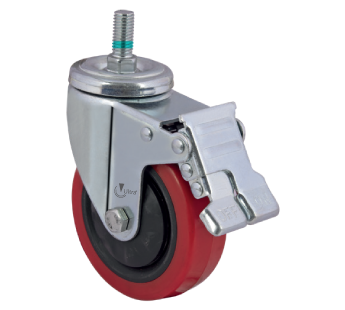

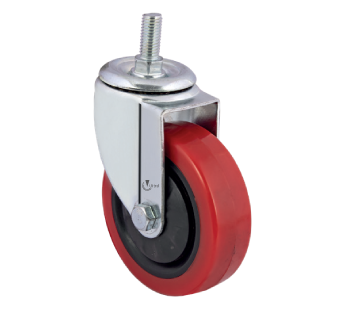

| Model No | Dia | Width | Stud Dia | Stud | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|
| Size | Height | Height | (KG) | (KG) | Bearing | |||
| ZPD/50X25/M10/PVC | 50 | 25 | M10 | 25 | 71 | 40 | 50 | Single |
| ZPD/75X32/M12/PVC | 75 | 32 | M12 | 25 | 105 | 50 | 60 | Single |
| ZPD/100X32/M12/PVC | 100 | 32 | M12 | 25 | 130 | 70 | 90 | Single |
| ZPD/125X32/M12/PVC | 125 | 32 | M12 | 25 | 155 | 100 | 130 | Single |
