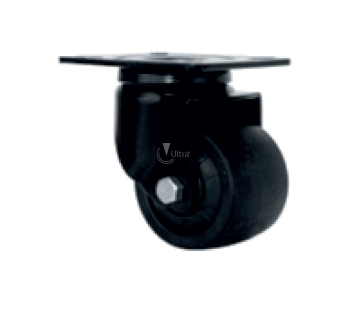

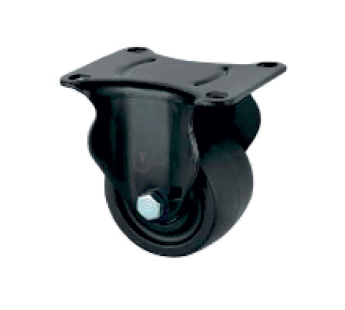

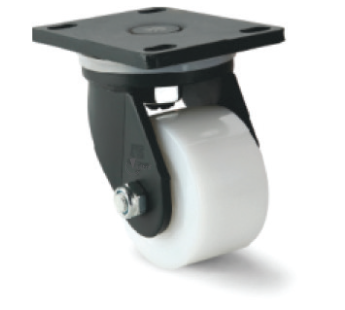

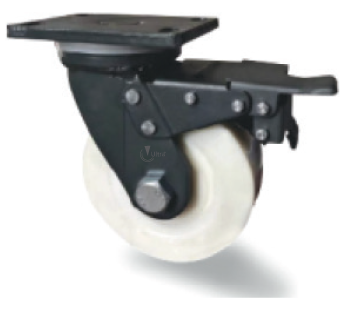

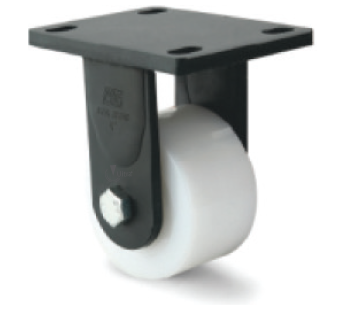

Black Powder Coated Heavy Duty Caster With Nylon Wheel
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Model No | Dia | Width | Plate | Bolt Hole | Capsule | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Hole Size | Height | (KG) | (KG) | Bearing | |||
| BPF/100X57/PT/Nylon | 100 | 57 | 140 x 110 | 110 x 84 | 13 | 152 | 550 | 600 | Double |
| BPF/150X57/PT/Nylon | 150 | 57 | 140 x 110 | 110 x 84 | 13 | 202 | 1100 | 1200 | Double |
| BPF/200X80/PT/Nylon | 200 | 57 | 140 x 110 | 110 x 84 | 13 | 252 | 1400 | 1500 | Double |
|
|
|
|
|
|
|
|
|
|
| Model No | Dia | Width | Plate | Bolt Hole | Capsule | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Hole Size | Height | (KG) | (KG) | Bearing | |||
| BPD/50x30/PT/Nylon | 50 | 30 | 72 x 53 | 55 x 38 | 6 | 78 | 130 | 150 | Double |
| BPD/65x40/PT/Nylon | 65 | 40 | 95x68 | 72x43 | 9 | 96 | 180 | 200 | Double |
| BPD/75x45/PT/Nylon | 75 | 45 | 105 x 82 | 83 x 60 | 9 | 105 | 230 | 250 | Double |
