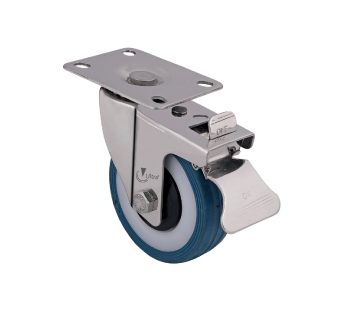

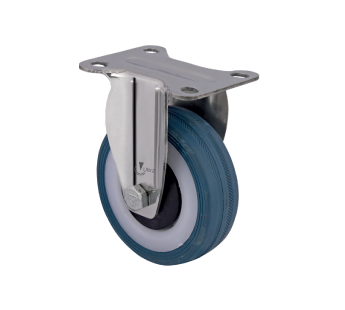

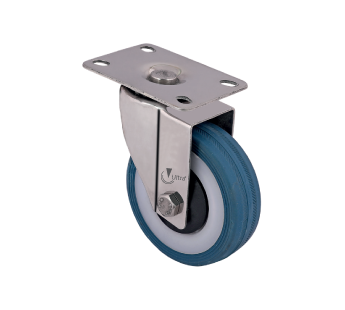

Stainless Steel Die Pressed Caster With Blue Rubber Wheels
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Model No | Dia | Width | Plate | Bolt Hole | Capsule | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Hole Size | Height | (KG) | (KG) | Bearing | |||
| SSD/75x32/PT/BR | 75 | 32 | 95 X 70 | 74 X 46 | 9 | 105 | 50 | 60 | Double |
| SSD/100x32/PT/BR | 100 | 32 | 95 X 70 | 74 X 46 | 9 | 125 | 70 | 90 | Double |
| SSD/125x32/PT/BR | 125 | 32 | 95 X 70 | 74 X 46 | 9 | 155 | 100 | 130 | Double |
| SSD/100x50/PT/BR | 100 | 50 | 94 X 94 | 70 X 70 | 9 | 130 | 100 | 120 | Double |
| SSD/150x50/PT/BR | 150 | 50 | 120 X 94 | 92 X 70 | 9 | 185 | 140 | 180 | Double |
|
|
|
|
|
|
|
|
|
|
| Model No | Dia | Width | Plate | Bolt Hole | Capsule | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Hole Size | Height | (KG) | (KG) | Bearing | |||
| SSD/75x32/PT/BR | 75 | 32 | 21 | 38 | 105 | 50 | 60 | Double | |
| SSD/100x32/PT/BR | 100 | 32 | 21 | 38 | 125 | 70 | 90 | Double | |
| SSD/125x32/PT/BR | 125 | 32 | 21 | 38 | 155 | 100 | 130 | Double | |
| SSD/100x50/PT/BR | 100 | 50 | 21 | 38 | 130 | 100 | 120 | Double | |
| SSD/150x50/PT/BR | 150 | 50 | 21 | 38 | 185 | 140 | 180 | Double |
|
|
|
|
|
|
|
|
|

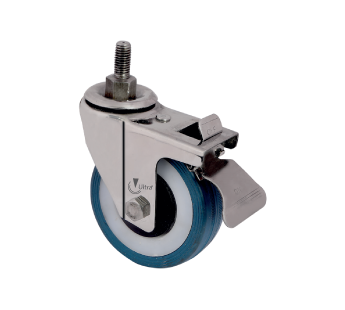

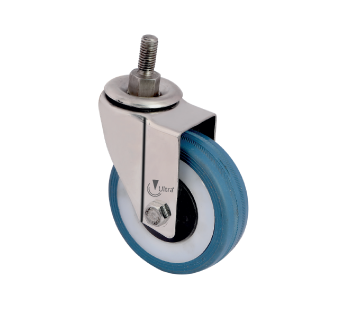

| Model No | Dia | Width | Stud Dai | Stud | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|
| Size | Height | Height | (KG) | (KG) | Bearing | |||
| SSD/75x32/PI/BR | 75 | 32 | M12 | 25 | 105 | 50 | 60 | Double |
| SSD/100x32/PI/BR | 100 | 32 | M12 | 25 | 130 | 70 | 90 | Double |
| SSD/125x32/PI/BR | 125 | 32 | M12 | 25 | 155 | 100 | 130 | Double |
| SSD/100x50/M16/BR | 100 | 50 | M16 | 50 | 130 | 100 | 120 | Double |
| SSD/150x50/M16/BR | 150 | 50 | M16 | 50 | 185 | 140 | 180 | Double |
