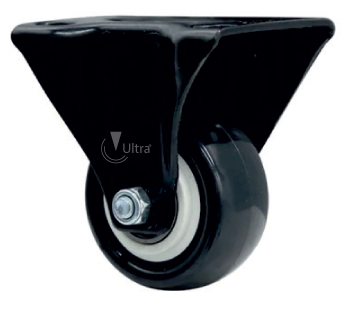

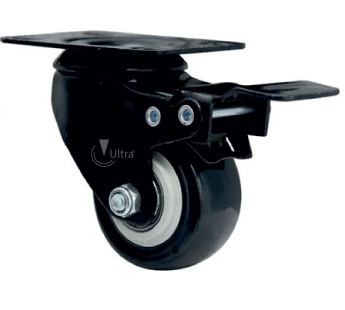

Black Powder Coated Die Pressed Caster
 |
 |
 |
 |
 |
 |
 |
 |
 |
|
| Model No | Dia | Width | Plate | Bolt Hole | Capsule | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|---|
| Size | Spacing | Height | Height | (KG) | (KG) | Bearing | |||
| PCD/40X20/PT/BPU | 40 | 20 | 60 x 43 | 45 x 27 | 6.5 | 60 | 25 | 30 | Double |
| PCD/50X25/PT/BPU | 50 | 25 | 70 x 51 | 55 x 35 | 8.5 | 71 | 35 | 40 | Double |
|
|
|
|
|
|
|
|
|

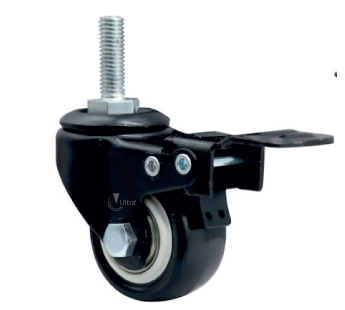

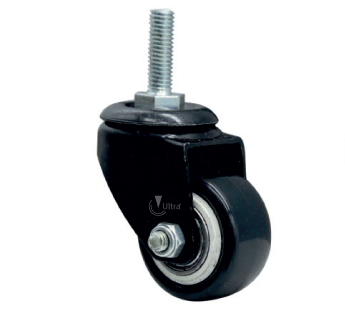

| Model No | Dia | Width | Stud Dia | Stud | Total | Dynamic | Static | Wheel |
|---|---|---|---|---|---|---|---|---|
| Size | Height | Height | (KG) | (KG) | Bearing | |||
| PCD/40X20/M10/BPU | 40 | 20 | M10 | 25 | 60 | 25 | 30 | Double |
| PCD/50X25/M10/BPU | 50 | 25 | M10 | 25 | 71 | 40 | 50 | Double |
