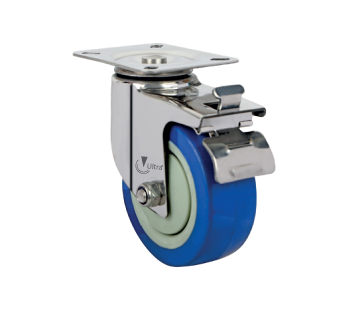

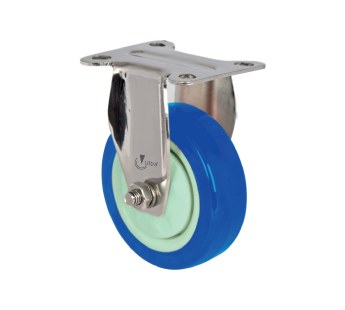

Stainless Steel Die Pressed Caster With Blue PU Antistatic Wheel

Home
Bridge
Bridge
Bridge

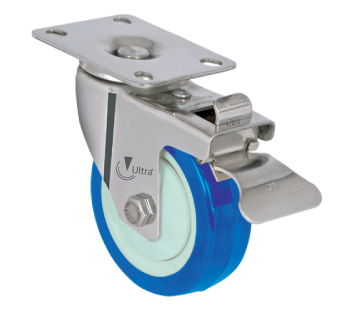

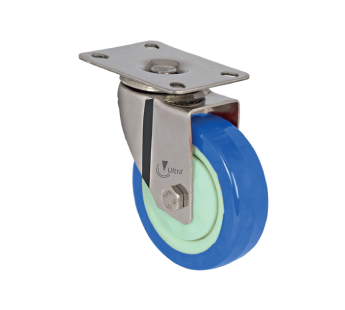

Model No Dia Width Plate Bolt Hole Capsule Total Dynamic Static Wheel
Size Spacing Hole Size Height (KG) (KG) Bearing
SSD/50x25/PI/APU 50 25 70 X 51 52 X 35 8 70 40 50 Single
SSD/75x32/PI/APU 75 32 95 x 70 74 x 46 9 105 50 60 Single
SSD/100x32/PI/APU 100 32 95 x 70 74 x 46 9 125 70 90 Single
SSD/125x32/PI/APU 125 32 95 x 70 74 x 46 9 155 100 130 Single
Bridge
Bridge

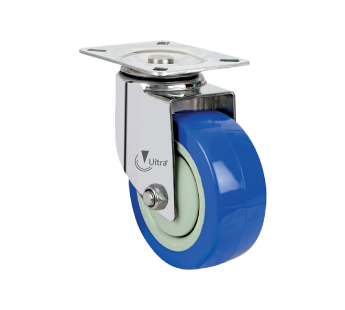

Model No Dia Width Plate Bolt Hole Capsule Total Dynamic Static Wheel
Size Spacing Hole Size Height (KG) (KG) Bearing
SSD/100x50/PI/APU 100 50 94 X 94 70 X 70 9 130 100 120 Double
SSD/125x50/PI/APU 125 50 120 x 94 92 x 70 9 155 125 150 Double
SSD/150x50/PI/APU 150 50 120 x 94 92 x 70 9 185 140 180 Double
Bridge
Bridge

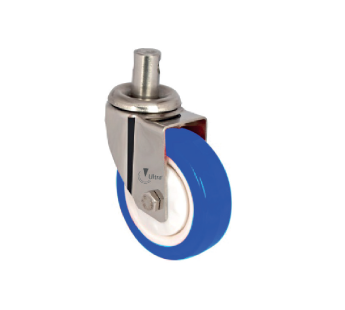

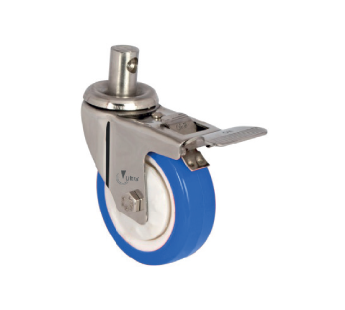

Model No Dia Width Pin Dia Pin Total Dynamic Static Wheel
Size Spacing Height (KG) (KG) Bearing
SSD/75x32/PI/APU 75 32 21 38 105 50 60 Single
SSD/100x32/PI/APU 100 32 21 38 130 70 90 Single
SSD/125x32/PI/APU 125 32 21 38 155 100 130 Single
Bridge
Bridge

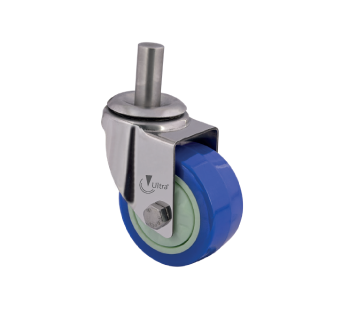

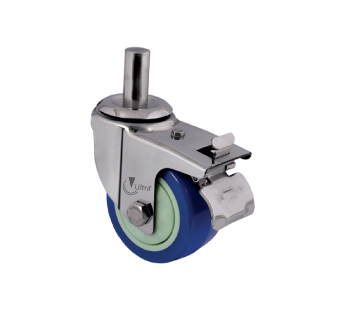

Model No Dia Width Pin Dia Pin Total Dynamic Static Wheel
Size Spacing Height (KG) (KG) Bearing
SSD/100x50/PI/APU 100 50 21 45 130 100 120 Double
SSD/125x50/PI/APU 125 50 21 45 155 125 150 Double
SSD/150x50/PI/APU 150 50 21 45 185 140 180 Double
Bridge
Bridge

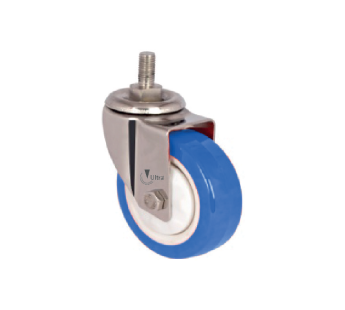

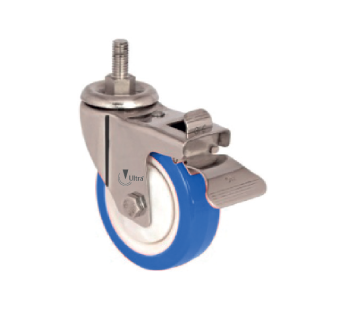

Model No Dia Width Stud Dai Stud Total Dynamic Static Wheel
Size Height Height (KG) (KG) Bearing
SSD/50x25/M10/APU 50 25 M10 25 73 40 50 Single
SSD/75x32/M12/APU 75 32 M12 38 105 50 60 Single
SSD/100x32/M12/APU 100 32 M12 38 130 70 90 Single
SSD/125x32/M12/APU 125 32 M12 38 155 100 130 Double
Bridge
Bridge
Model No Dia Width Stud Dai Stud Total Dynamic Static Wheel
Size Height Height (KG) (KG) Bearing
SSD/100x50/M16/APU 100 50 M16 50 130 100 120 Double
SSD/125x50/M16/APU 125 50 M16 50 155 125 150 Double
SSD/150x50/M16/APU 150 50 M16 50 185 140 180 Double
