Zinc Plated Die Pressed Caster With PP Wheel

Home
Bridge
Bridge
Bridge

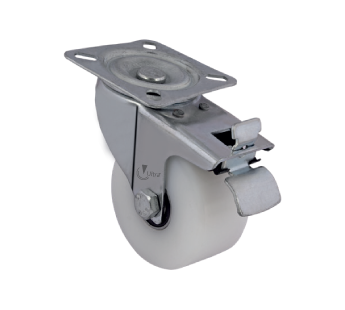

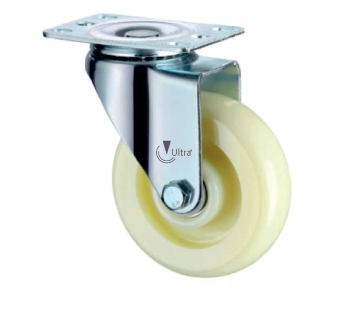

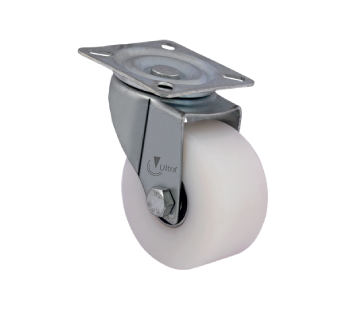

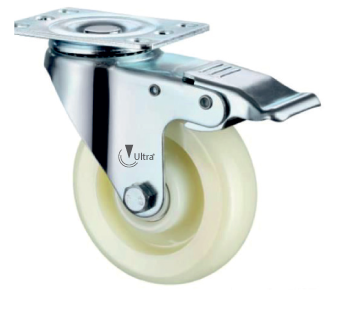

Model No Dia Width Plate Bolt Hole Capsule Total Dynamic Static Wheel
Size Spacing Hole Size Height (KG) (KG) Bearing
ZPD/50X25/PT/PP 50 25 70x51 55x35 8.5 71 40 50 Double
ZPD/65X32/PT/PP 65 32 92x62 78x45 8.5 95 50 70 Double
ZPD/75X32/PT/PP 75 32 92x62 78x45 8.5 105 80 100 Double
ZPD/100X32/PT/PP 100 32 92x62 78x45 8.5 130 100 120 Double
ZPD/125X32/PT/PP 125 32 92x62 78x45 8.5 155 110 130 Double
Bridge
Bridge
Bridge

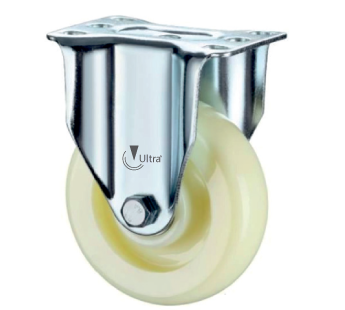

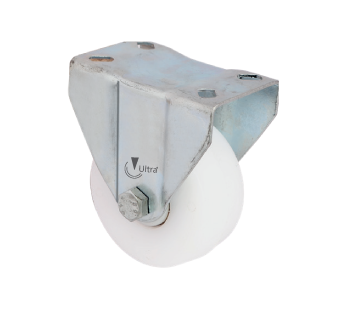

Model No Dia Width Plate Bolt Hole Capsule Total Dynamic Static Wheel Fix Plate Size Fix Bolt Hole
Size Spacing Hole Size Height (KG) (KG) Bearing
ZPD/100X50/PT/ PP 100 50 94 x 94 70 x 70 9 130 100 120 Double 120 x 73 95 x 45
ZPD/150X50/PT/ PP 150 50 120 x 94 92 x 70 10 185 150 180 Double 116 x 80 85 x 54
ZPD/200X50/PT/ PP 200 50 120 x 94 92 x 70 10 235 180 220 Double 116 x 80 85 x 54
Bridge
Bridge

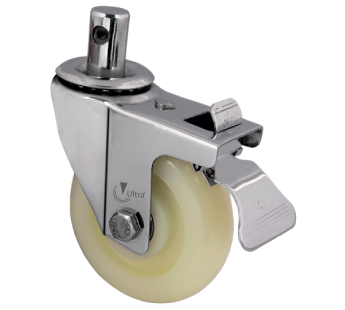

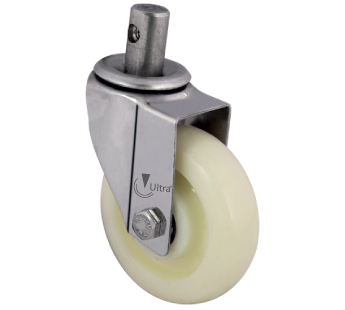

Model No Dia Width Pin Dia Pin Total Dynamic Static Wheel
Size Height Height (KG) (KG) Bearing
ZPD/75X32/PI/ PP 75 32 21 38 105 80 100 Double
ZPD/100X32/PI/PP 100 32 21 38 130 100 120 Double
ZPD/125X32/PI/PP 125 32 21 38 155 110 130 Double
Bridge
Bridge

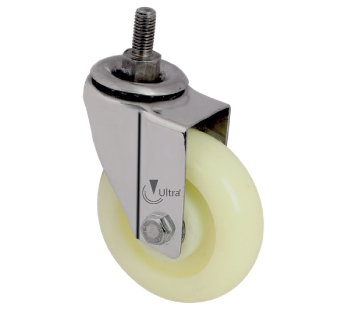

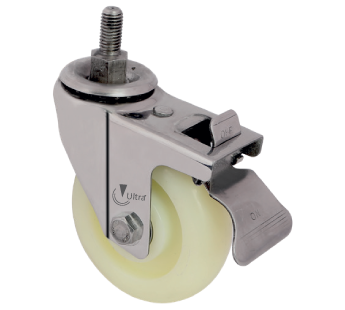

Model No Dia Width Stud Dia Stud Total Dynamic Static Wheel
Size Height Height (KG) (KG) Bearing
ZPD/50X25/M10/PP 50 25 M10 25 73 40 50 Double
ZPD/75X32/M12/PP 75 32 M12 25 105 80 100 Double
ZPD/100X32/M12/PP 100 32 M12 25 130 100 120 Double
ZPD/125X32/M12/PP 125 32 M12 25 155 110 130 Double
